KBPC810 single phase bridge rectifier 6 K / W Thermal resistance , junction to case

Name: KBPC810 single phase bridge rectifier 6 K W Thermal resistance junction to case
Brand: Anterwell
Price: 1 USD

Brand Name : Anterwell

Model Number : KBPC810

Certification : new & original

Place of Origin : original factory

MOQ : 20pcs

Price : Negotiate

Payment Terms : T/T, Western Union, Paypal

Supply Ability : 8800pcs

Delivery Time : 1 day

Packaging Details : Please contact me for details

Maximum I2√t capability for fusing : 1105 A2√s

Maximum peak forward voltage per diode : 1.0 V

Operating frequency range : 400 to 1000 Hz

Maximum repetitive peak reverse voltage range : 50 to 1000 V

Operating and storage temperature range : - 55 to 150 °C

Thermal resistance, junction to case : 6 K/W

Contact Now

KBPC810 single phase bridge rectifier 6 K / W Thermal resistance , junction to case

Stock Offer (Hot Sell)

Part no.

Quantity

Brand

D/C

Package

2N3904	5120	FSC	14+	TO-92
IRF7104	5120	IR	14+	SOP8
IRFP460	5120	IR	14+	TO-247
M57962AL	5120	MITSUMI	16+	ZIP-12
MAX483CPA	5120	MAXIM	16+	DIP-8
MCP6002-I/P	5120	MICROCHI	13+	DIP
P6SMB15CA	5120	ON	15+	SMB
TNY267PN	5120	POWER	16+	DIP-7
TNY278PN	5120	POWER	16+	DIP-7
MM74C923	5122	FSC	14+	SOP
LT3467AES6	5140	LT	14+	SOT236
IRFP450	5166	IR	14+	TO-247
MC33153P	5187	ON	16+	DIP8
ADM706ARZ	5200	AD	16+	SOP
C9014	5200	KEC	13+	TO-92
EV1527	5200	EV	15+	SOP8
FSCQ1565RTYDTU	5200	FAIRCHILD	16+	TO220
KA7824	5200	FSC	16+	TO-220
LD1117AL-1.2V-A	5200	UTC	14+	SOT-223
LM324N	5200	TI	14+	DIP14
LM741CN	5200	NS	14+	DIP-8
OPA335AIDBV	5200	TI	16+	SOT23-5
SN75LBC184DR	5200	TI	16+	SOP-8
TPC8111	5200	TOSHIBA	13+	SOP8
MW4IC2230NB	5201	FREESCALE	15+	SMD
TL494 TI DIP	5201	TI	16+	DIP
TOP222PN	5212	POWER	16+	DIP8
TPA3113D2PWPR	5212	TI	14+	TSSOP28
2SD1410	5222	TOSHIBA	14+	TO-220F
AM26LV32CD	5240	TI	14+	SOP16

KBPC8 Series

Vishay High Power Products

Single Phase Rectifier Bridge, 8 A

FEATURES KBPC810 single phase bridge rectifier 6 K / W Thermal resistance , junction to case

• Suitable for printed circuit board or chasis mounting

• Compact construction

• High surge current capability

• Fully characterised data

• Wide temperature range

• RoHS compliant

PRODUCT SUMMARY

I_O(av):8.0 A

V_RRM: 50 to 1000 V

DESCRIPTION

The KBPC series of single phase rectifier bridge consists of four silicon junctions connected as a full bridge. These device are intended for general use in industrial and consumer equipment.

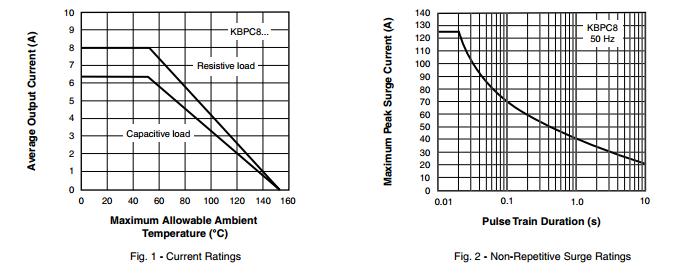

MAJOR RATINGS AND CHARACTERISTICS

SYMBOL	PARAMETER	CHARACTERISTICS	VALUES	UNITS
I_O	Maximum DC output current	T_C = 50 °C, resistive load	8	A
I_O	Maximum DC output current	T_C= 50 °C, capacitive load	6.4	A
I_FSM	Maximum peak one cycle, non-repetitive surge current	50 Hz	125	A
I_FSM	Maximum peak one cycle, non-repetitive surge current	60 Hz	137	A
I²t	Maximum I²t capability for fusing	50 Hz	110	A²s
I²t	Maximum I²t capability for fusing	60 Hz	100	A²s
V_RRM	Maximum repetitive peak reverse voltage range	Range	50 to 1000	V
T_J,T_Stg	Operating and storage temperature		- 55 to 150	°C

KBPC810 single phase bridge rectifier 6 K / W Thermal resistance , junction to case
